Aluminium constructions for your safety
JOMY specializes in a wide range of products including stairs, specialty ladders, walkways, stepladders, custom constructions and other safety accessories. All products are produced from anodized light weight aluminum.

Building Maintenance Units (BMU) and mobile façade access systems

Aluminium structures engineered to the highest standards: stairs, ladders, access gantries, platforms, carts and cages. For horizontal, vertical, sloped, round or curved surfaces. The preferred solution for an easy and safe access.

AC range: access systems for sloped or curved surfaces

The structures move over a series of fixed rails, attached to the building. The rails carry and guide the working structure.  Two types of rail structures are offered: round and I-shaped. The round rail is used as a "floor" for the structure with the moving part resting on the rail. The I shaped rail is used as a "ceiling" for the structure with the moving part hanging from the rail.

All JOMY mobile stairs are specially developed for your façade and customized to your specific requirements.

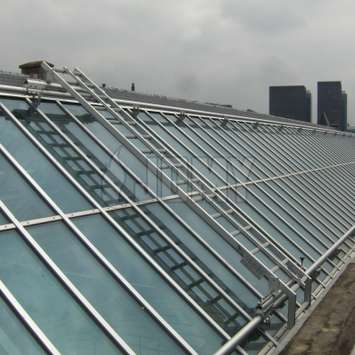

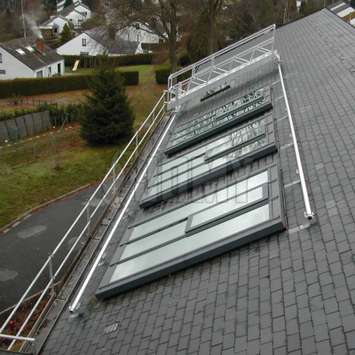

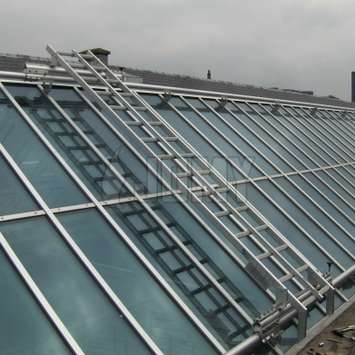

AC100: sloped stair or stepladder with linear movement
AC100
AC100
AC100

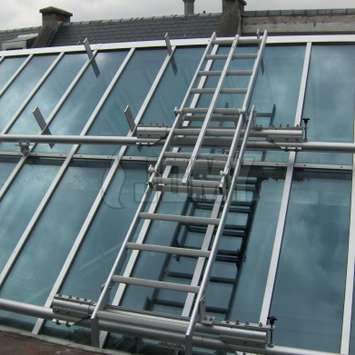

The AC100 is a JOMY stair or stepladder that is sloped in the correct angle(s) to access the façade of the building in an easy and safe way. This standard uprights are mostly recommended when your roof or the entire building exists of a lot of glass windows.

The system is linear movable thanks to the use of straight rails both at the top and the bottom. The rails can be both round or I-shaped.

By using mobile systems, the window cleaning and façade maintenance can be done better and safer.

AC100+: variant of the AC100 with guardrails
AC100+
AC100+
AC100+

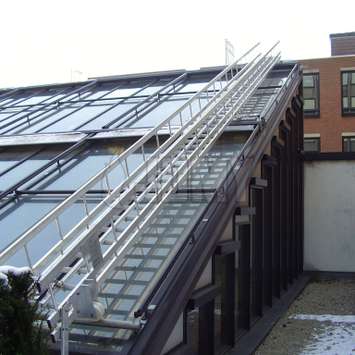

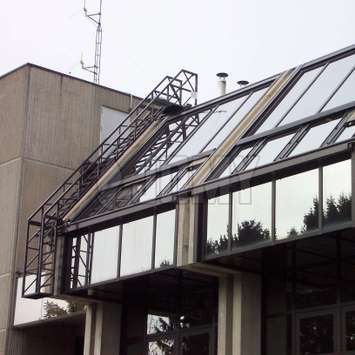

The AC100+ is almost the same as the AC100, but offers extra protection and safety by reinforcing the working structure with guardrails. A mobile staircase is equipped with guardrails at a height of 1m. For mobile stairs, the guardrails are placed at a height of 0.5m.

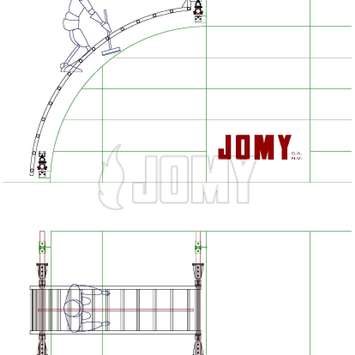

AC200: curved stair or ladder structure
AC200
AC200

The construction can move linear due to the presence of straight rails. The movement of the construction is made possible by a displacement system, for example chains or an electric system.

This type of mobile access systems makes it easy to maintain and clean your façade, roof or windows.

AC200+: variant of the AC200 with guardrails
AC200+

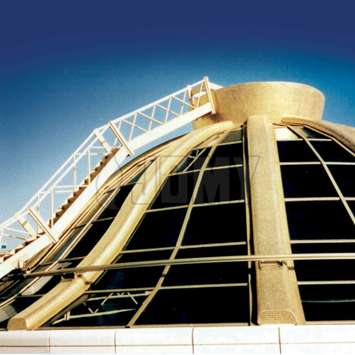

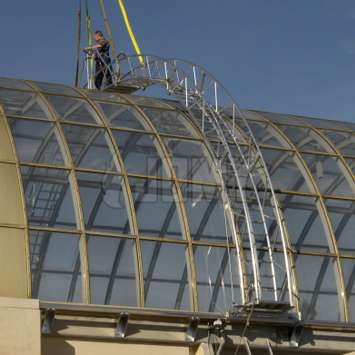

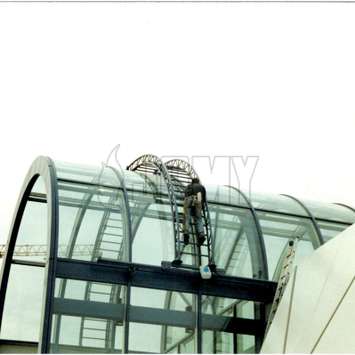

A JOMY on a half circle roof

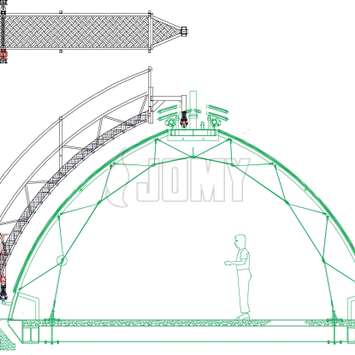

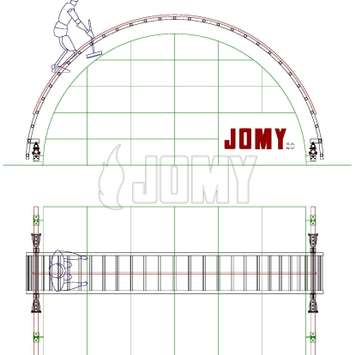

Drawing for a facade access installation on a dome

The only difference with the AC200 is that this construction is provided with safety guardrails at a height of 1m for stairs and 0.5m, and beams to obtain a reinforced working structure. The aluminum beams to reinforce the ladder provide a strong structure that is still light weighted. Different kinds of movement systems are available, going from chains to electric systems.

AC300: sloped or curved access system that can move circular
AC300
AC300
AC300

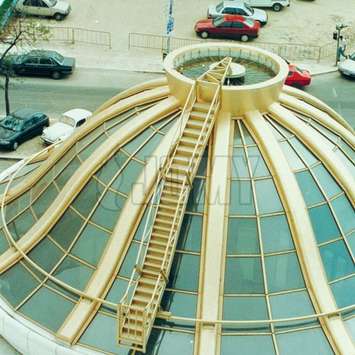

The AC300 is a ladder construction that can be sloped or curved. The entire round surface of your roof or façade can be reached by the use of curved rails, which makes a circular movement of the construction possible.

AC300+: variant of the AC300 with reinforced construction and optional guardrails
A JOMY special design for facade access
A curved painted JOMY ladder on a dome

The AC300+ is based on the same principle as the AC300, but is reinforced with light weighted aluminum beams. By using curved rails, the entire round surface can be reached with a sloped or curved construction. The constructions is reinforced with optional safety guardrails , at a height of 0.5m ladders and 1m for stairs.

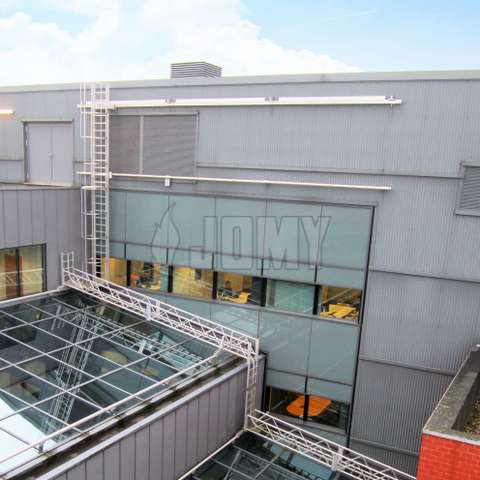

H range: mobile gantries and walkways to bridge distances at heights

The JOMY gantry systems move over a series of fixed rails, attached to the building. The rails carry and guide the working structure by way of translation bogies. Two types of rail structures are available: round and I-shaped. The round rail is used as a "floor" for the structure, with the moving part resting on the rail. The I shaped rail is used as a "ceiling" for the structure, with the moving part hanging from the rail.

All JOMY mobile walkways are specially developed and customized to your specific requirements.

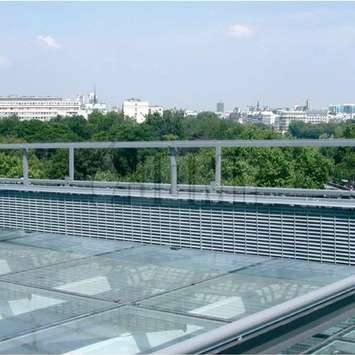

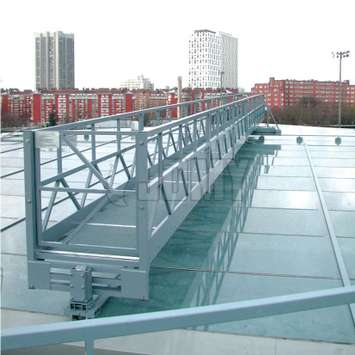

H100: horizontal linear moving gantry
Pivotin anodised aluminum work platform
Workplatform in anodised aluminum
AC100

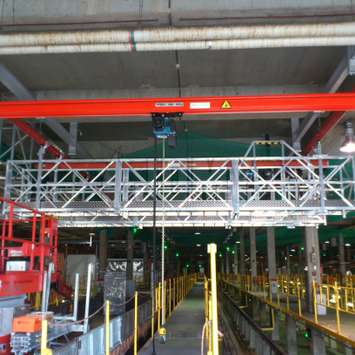

The H100 is a horizontal walkway that can move linear by the use of rails to bridge distances at heights or to access façades, roofs, or constructions. The rails can be round or I-shaped.

A wide variety of options are available including retractable guardrails, various types of flooring, painting in all colors, added LED lighting, and different movement systems (such as chain or electric).

H100+: heavy duty variant of the H100 with more load capacity
JOMY specializes in a wide range of products including stairs, specialty ladders, walkways, stepladders, custom constructions and other safety accessories. All products are produced from anodized light weight aluminum.

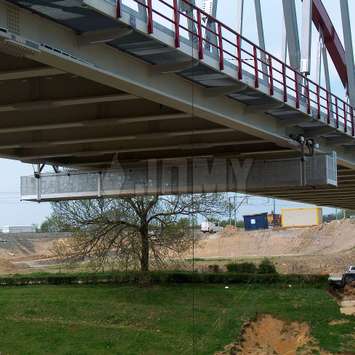

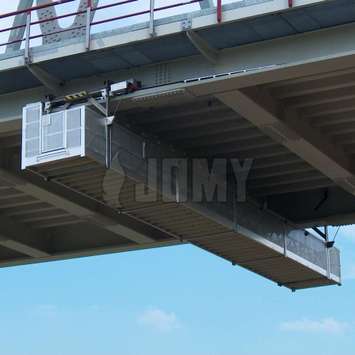

A JOMY gantry in aluminum under a bridge
A JOMY installation for maintenance of a bridge

This mobile walkway can move linear by the use of round or I-shaped rails. H100+ gantries are extra long and firm and equipped with aluminum beams for extra strength. They are still very lightweight and capable of carrying more weight.

H200: facade access gantry with mobile working cage

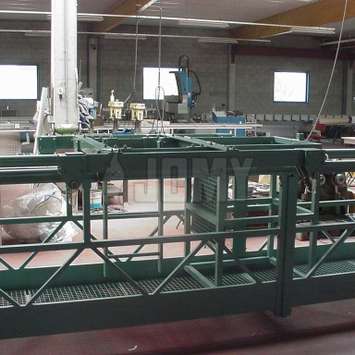

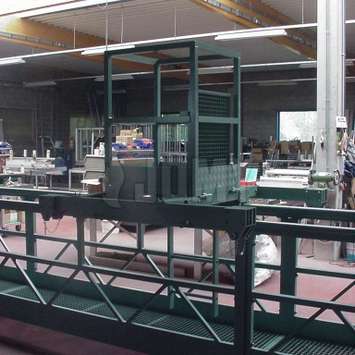

Mobile aluminum workplatform
H200
H200

The H200 is a mobile gantry that is provided with an extra mobile platform with guardrails. The walkway rests on fixed rails and can move horizontally. The rails can be round or I-shaped. The movement of the walkway can operate with different systems, such as chain or electric systems.

The mobile platform is attached to the guardrails of the gantry and is a vertical extension for reaching higher parts of the façade or roof windows. It can also shift horizontally by moving along the guardrails.

Foldable mobile platforms are available on request. These platform can be folded away inside the gantry, which can be important for aesthetic reasons.

H200+: variant of the H200 with telescopic cart

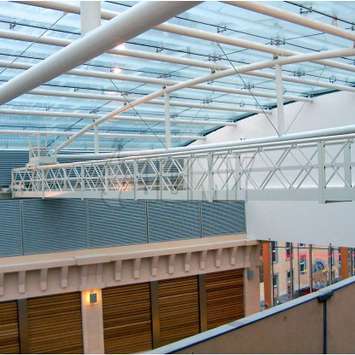

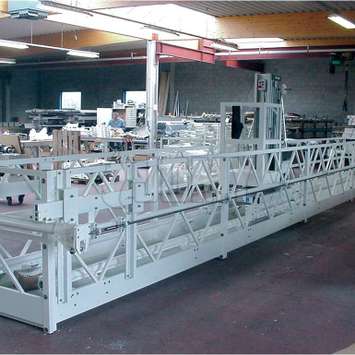

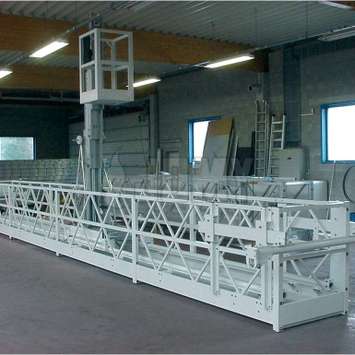

Work platform with telescopic gantry
Aluminum work platform with aluminum gantry

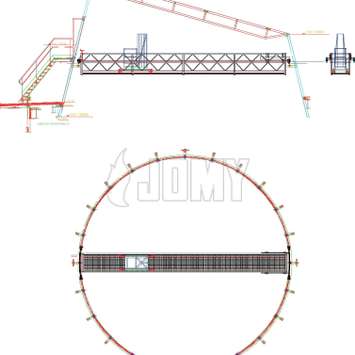

Drawing of workplatform with telescopic gantry

This platform can reach higher by using a telescopic system. The telescopic movement is made possible by using cables and makes window cleaning and maintenance much simpler.

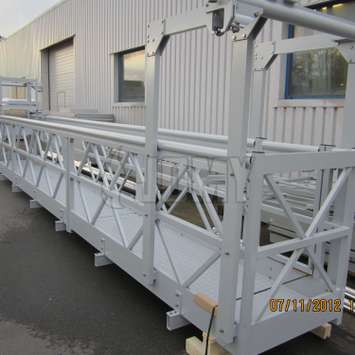

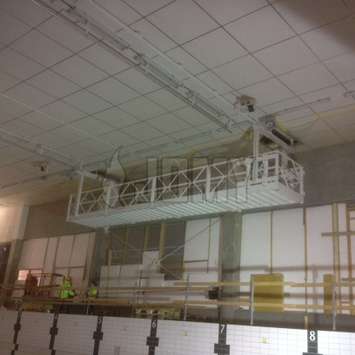

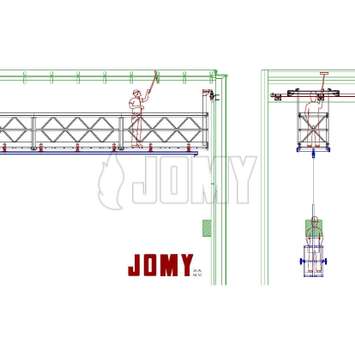

H300: mobile walkway gantry with suspended cradle
H300
H300

The walkway rests on rails to make straight linear movements. The rails can be round or I-shaped. The movement of the gantry is made possible by displacement systems like chains or an electric system.

Underneath the gantry, a rail system is provided. This makes it possible for the attached suspended cradle to move horizontally. A pulley system makes it possible for the suspension bridge to move vertically. The suspended cradle is available for one or two persons.

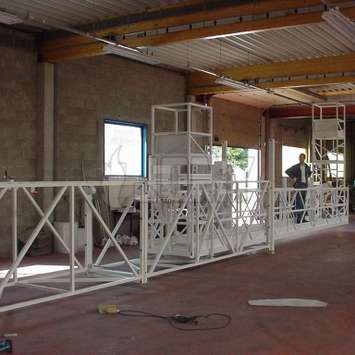

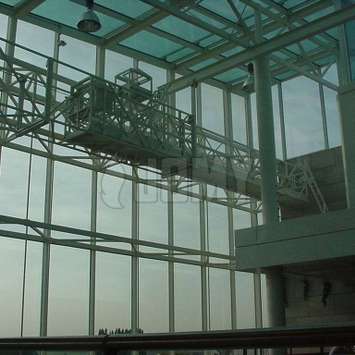

H400: mobile gantry with horizontal telescopic extension
H400
H400
H400

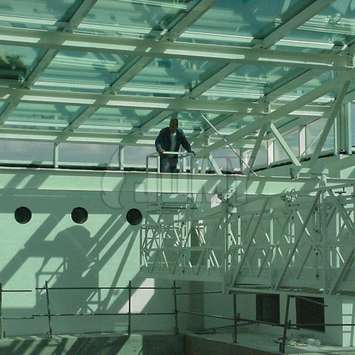

The entire surface of the façade can be reached, even if the distance between the gantry and the façade differ at some points.

The mobile walkway rests on a rail system, allowing the gantry to make horizontal movements. The rails can be O-shaped or I-shaped. The displacement of the walkway can work with movement systems, like chains or electric systems.

An extra optional mobile platform with guardrails can be added to the telescopic part to create horizontal and vertical extensions of the gantry.

V range: mobile facade access ladders

4 types are available: the V100 with safety rail, the V200 with safety cage, the V300 with washlift and the V400 with a reinforced working structure.

Mobility is guaranteed by the use of a rail system. The rails carry and guide the working structure. Two types of rail structure are offered: round and I-shaped. The round rail is used as a floor for the structure with the moving part resting on the rail. I-shaped rails are used as a ceiling for the structure with the moving part hanging from the rail.

Extra options like an horizontal access balconies, different movement systems (like chains), foldable landings, and different colors are available.

All JOMY mobile ladders can be specially developed for your façade and customized to your specific needs.

V100: mobile vertical ladder with security rail

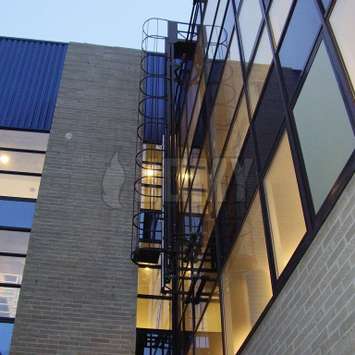

JOMY hanging ladder for facade access

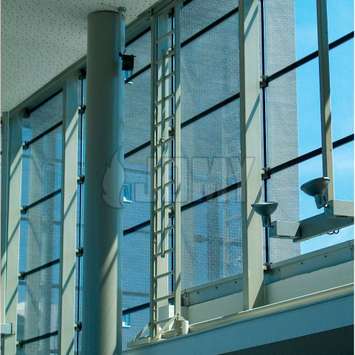

Interior streight hang ladder

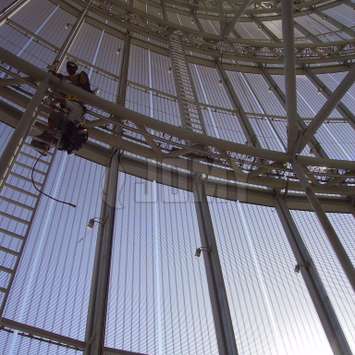

Mobile interior hangladder with integrated lineline

The V100 is a vertical ladder that can move horizontally over an I-shaped or O-shaped rail.

This vertical ladder comes with a lifeline. A safety rail eliminates the need for a safety cage. JOMY has developed a lifeline based on a fixed aluminum rail with a mobile carriage. The user attaches his safety-belt to the carriage, which blocks on the fixed rail in case of a fall or sudden movements.

Options include folding access platforms and landings for extra safety.

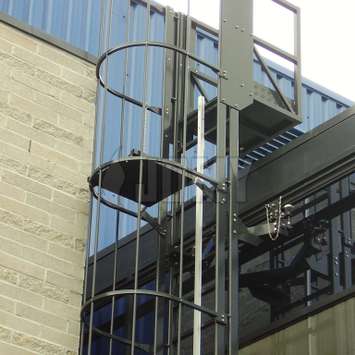

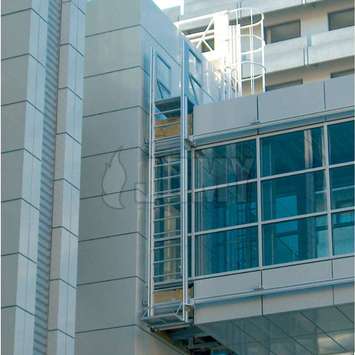

V200: mobile vertical ladder with safety cage
Mobile hang ladder
V200
V200

This ladder can move horizontally over an I-shaped or O-shaped rail.

An horizontal access balcony or steps to cross roof edges can be added to increase the safety at heights. Folding landings can guarantee safety and give the workers moving space to move around at heights.

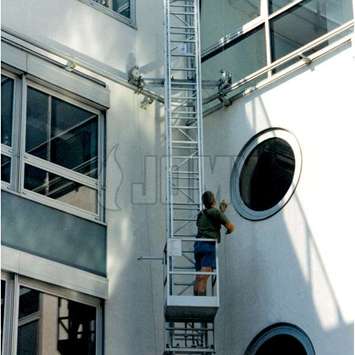

V300: mobile vertical ladder with a "Washlift" platform

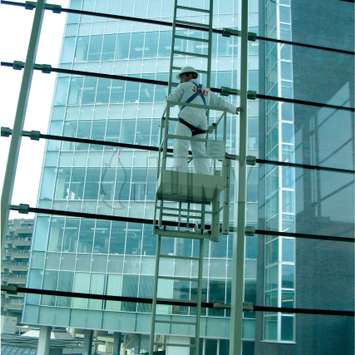

A gantry on a person is a washlift

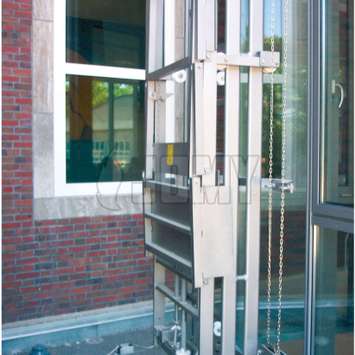

A foldable washlift

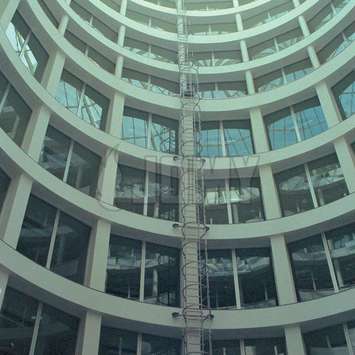

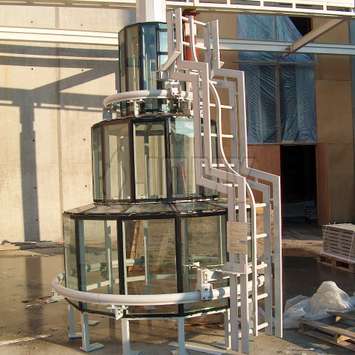

Mobile hangladder with gantry on a curved wall three

This ladder can move horizontally over I-shaped or O-shaped rails. The Washlift is useful in many situations, from window cleaning to building maintenance. The user hauls up the platform, which is connected to a safety belt.

The fold-away platform with a weight of 17kg is an interesting option.

The Washlift can easily pass both interior and exterior corners of the façade.

V400: reinforced mobile ladder for high buildings
Facade acces by hanging ladders in aluminum

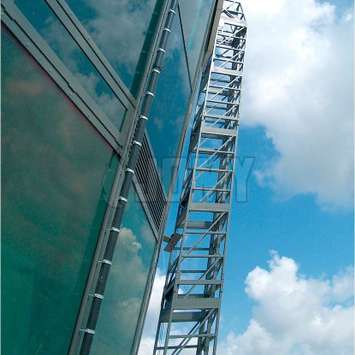

Detail of a reversed inclined hangladder

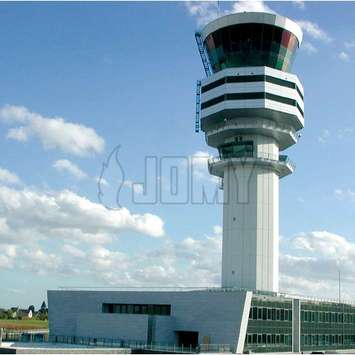

Two JOMY hanging ladders on an aircontrol tower

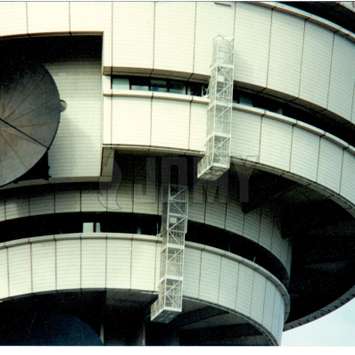

The V400 can be vertical or sloped. To reinforce this structure and to increase safety, the ladder is fully caged like a tower. It's the ideal solution for high buildings where there is a lot of wind. The person is supported by the structure and not hanging from it.

This mobile caged tower can move along the entire perimeter of the building with a rail system. This rail system can be linear or curved.

The V400 can also be provided with a safety rail or fold away landings.

Other JOMY custom constructions

Industrial facade access by JOMY
